PROXXON AUTOMATIC UNIVERSAL AXIAL FEED AV/E

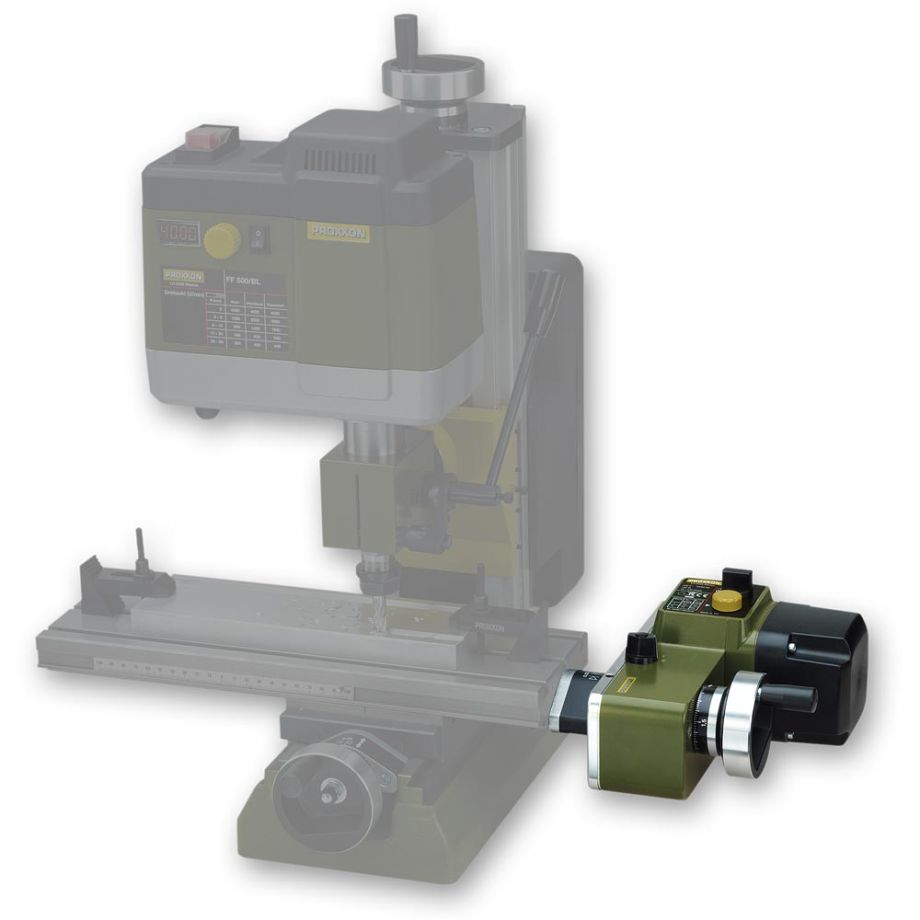

The Automatic Universal Axial Feed AV/E fits onto the X-axis of the FF 500/BL Mill. It will also fit the KT 400 Compound Table and the FF 400 Mill.

Assembly is simple, with just two bolts to attach the feed to the X-axis of the compound table. A balanced special 100W DC motor with electronic speed control (full-wave electronics) drives the feed from 10 to 130rpm. It offers two variable speed ranges: 20 to 75mm per minute for general work and 90 to 260mm per minute for machining at higher speed. For manual operation, mount the hand-wheel onto the spindle of the drive-axis.

Dimensions: H x W x D 120 x 170 x 210mm, weight: 3.5kg.

Key Features

  • Automatic power feed for controlled milling
  • Fits onto the X-axis of the FF 500/BL Mill
  • Also fits KT 400 Compound Table and FF 400 Mill
  • Simple assembly and setup
  • DC motor with electronic speed control
  • 2 speed ranges; general work or high speed machining
More Information
Feed Speed20 mm/min to 75 mm/min (var) 90 mm/min to 260 mm/min (var)
Motor Power100 W
Nett Weight3.5 kg
RatingIndustrial
Voltage230 V

£318.00 . (£381.60 incl VAT)

Price includes UK mainland delivery on orders over £100 +VAT
Proxxon Product Code: 105035 Category:
