Preselectable drill depth using depth control with easily readable scale
Articulated arm pivoted in two locations
Flat-milled, solid base plate
200 x 200mm usable table area and 2 continuous T-slots
20mm system fit for precise clamping of drilling device

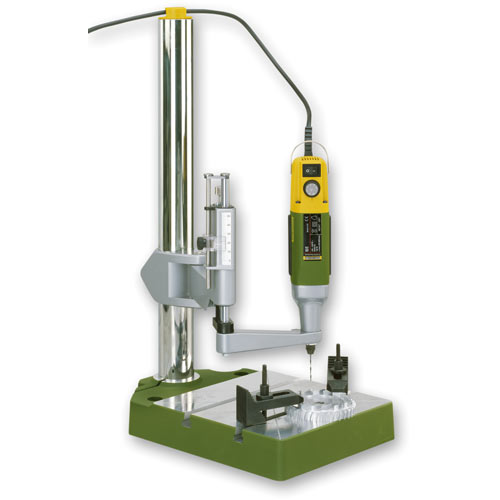

A precise device for parallel drilling, thread-cutting and milling. Made in high-precision aluminium diecasting. With articulated arm pivoted in two locations. The device can be guided both sideways and vertically across the whole working area very precisely once clamped. It always remains vertically aligned. This means that any drill holes made are always precisely square to the workpiece surface!With 20mm system fit for precise clamping of drilling devices such as Precision Drill/Grinder FBS 240/E. Professional Drill/Grinder IB/E, Longneck Straight Drill/Grinder LB/E, MICROMOT 50, 50/E and 50/EF.An adjustable spring automatically pulls the device back into its top rest position after drilling. Preselectable drill depth using depth control with easily readable scale.Flat-milled, solid base plate with 200 x 200 mm usable table area and 2 continuous T-slots. Stable drill column (45mm diameter, 500mm long). Weight approx. 6kg. (Note: Professional drill/grinder IB/E and step clamps are not included in the package).
